Execution of the final project

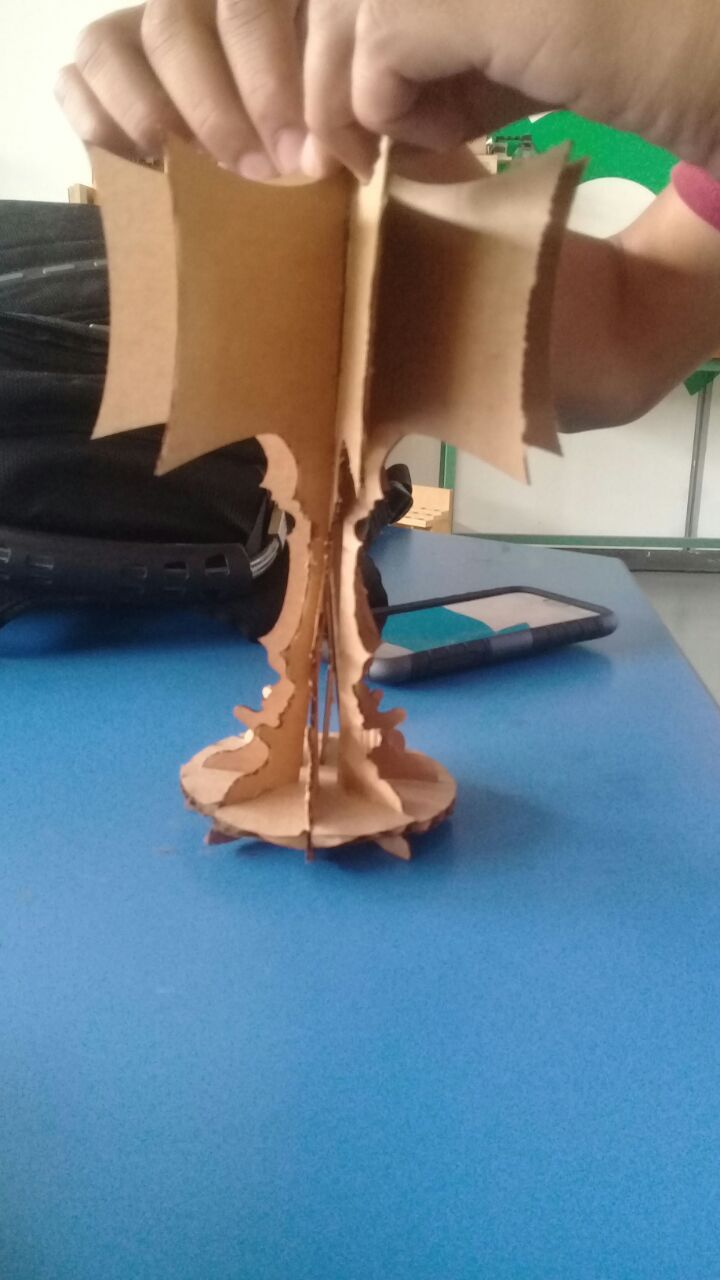

Presentation of second prototype echo to the corresponded material of the project. The design and configuration of the proposal is explained. Prototype video material.
2D and / or 3D design
It is necessary to make a prototype before assembling it in the physical part, for that reason tools such as Autocad, rhinoceros, frizz helped us to make a virtual assembly of both the connections of the circuit that was developed in the sketch as well as the correct operation and possible improvements .
Enlaces para descargar los archivos
EL presente archivo muestra el modelo 1 (Rhinoceros).
Hacer click aqui para descargar.EL presente archivo muestra el modelo 2 (Rhinoceros).
Hacer click aqui para descargar.EL presente archivo muestra el modelo 3 (Rhinoceros).
Hacer click aqui para descargar.
